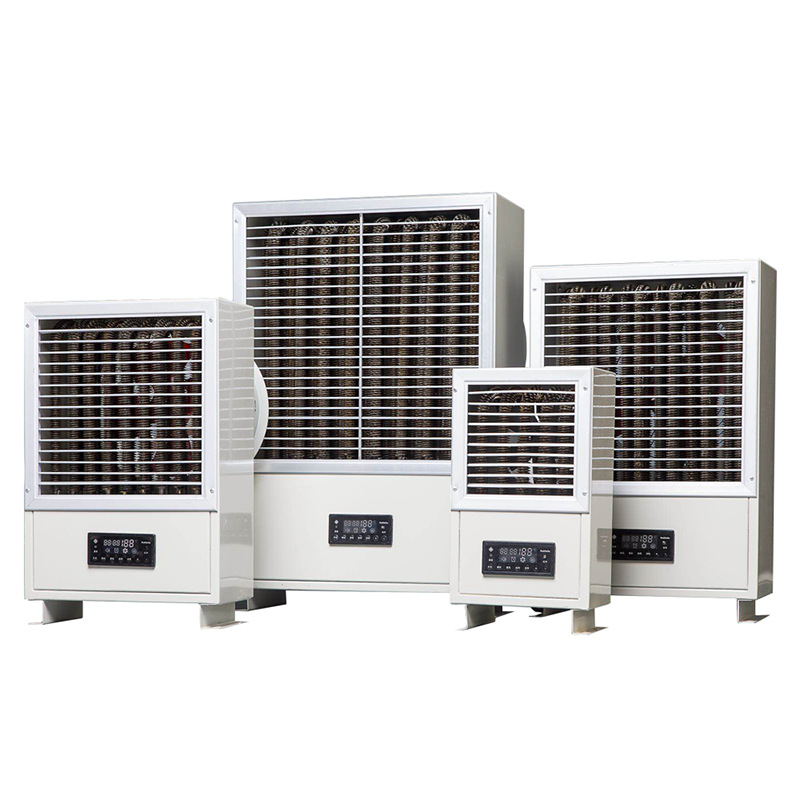

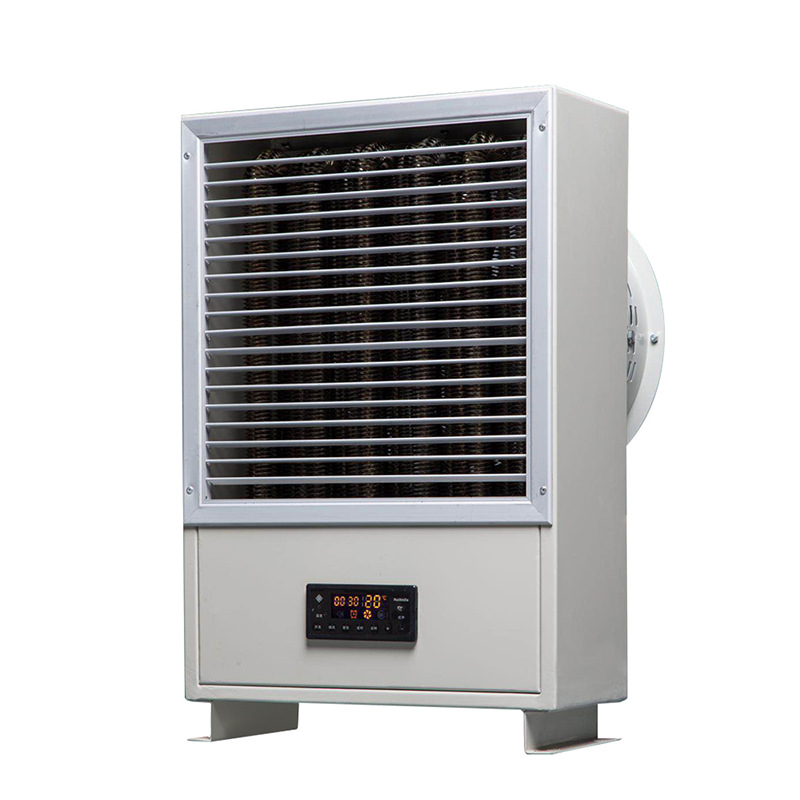

Industrial electric heater
1. High-power heating: Industrial electric heaters usually have high power and can quickly generate a large amount of heat energy.
2. High-efficiency heat conversion efficiency: The heating elements inside are well designed and can efficiently convert electrical energy into heat energy, reducing energy loss.
3. Intelligent temperature control system: Equipped with advanced temperature control systems, including high-precision temperature sensors and intelligent controllers. The temperature sensor can sense the ambient temperature in real time and transmit the data to the controller.
4. Sturdy and durable construction: The outer shell of industrial electric heaters is usually made of high-strength metal materials such as stainless steel or high-quality carbon steel, which have good impact resistance and wear resistance.
5. Waterproof and dustproof design: Through sealing design, protective nets and special filters, moisture and dust are prevented from entering the interior of the equipment, thereby extending the service life of the equipment and reducing the probability of failure.
6. Multiple safety protection mechanisms: It has multiple safety protection functions, such as overheating protection, overload protection and leakage protection.
7. Portability and mobility: Some small or medium-sized industrial electric heaters are portable, and they usually have handles or wheels for easy movement in industrial sites

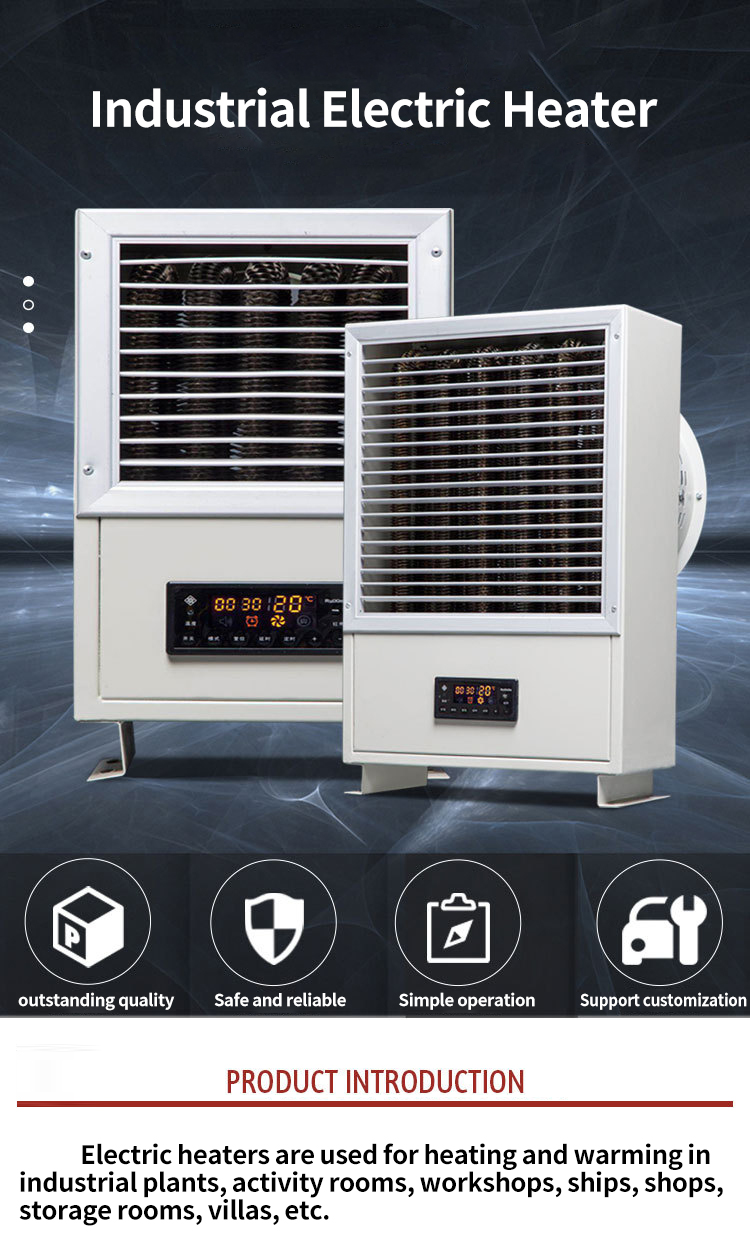

The industrial electric heater is a high-performance device specially designed to meet the heating and drying needs in the industrial field. It combines multiple excellent features to provide reliable temperature regulation and drying functions for industrial environments.Electric heaters are used for heating and temperature increase in industrial plants, activity rooms, workshops, ships, shops, storage rooms, villas and other places.

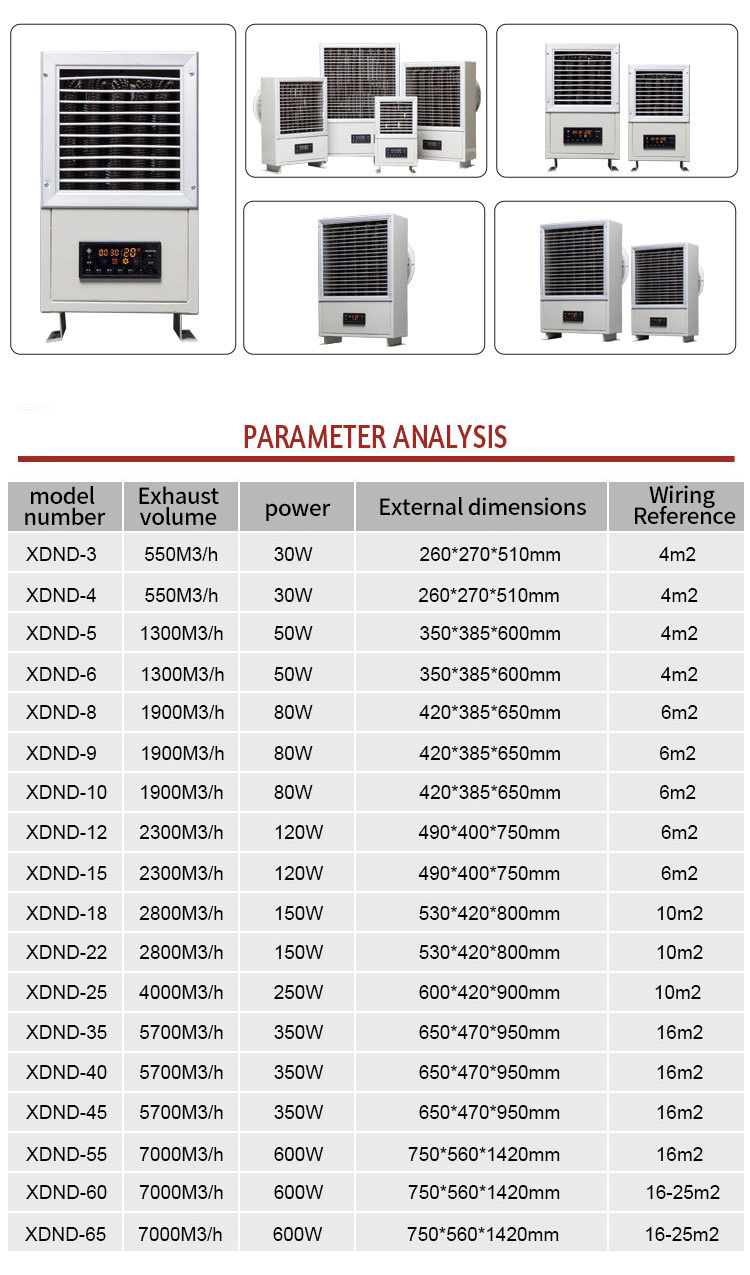

model number,Exhaust volume,power,External dimensions,Wiring Reference.
XDND-3,550M3/h,30W,260*270*510mm,4m2
XDND-4,550M3/h,30W,260*270*510mm,4m2
XDND-5,1300M3/h,50W,350*385*600mm,4m2
XDND-6,1300M3/h,50W,350*385*600mm,4m2
XDND-8,1900M3/h,80W,420*385*650mm,6m2
XDND-9,1900M3/h,80W,420*385*650mm,6m2
XDND-10,1900M3/h,80W,420*385*650mm,6m2
XDND-12,2300M3/h,120W,490*400*750mm,6m2
XDND-15,2300M3/h,120W,490*400*750mm,6m2
XDND-18,2800M3/h,150W,530*420*800mm,10m2
XDND-22,2800M3/h,150W,530*420*800mm,10m2
XDND-25,4000M3/h,250W,600*420*900mm,10m2
XDND-35,5700M3/h,350W,650*470*950mm,16m2
XDND-40,5700M3/h,350W,650*470*950mm,16m2
XDND-45,5700M3/h,350W,650*470*950mm,16m2
XDND-55 7000M3/h,600W,750*560*1420mm,16m2
XDND-60,7000M3/h,600W,750*560*1420mm,16-25m2
XDND-65,7000M3/h,600W,750*560*1420mm,16-25m2

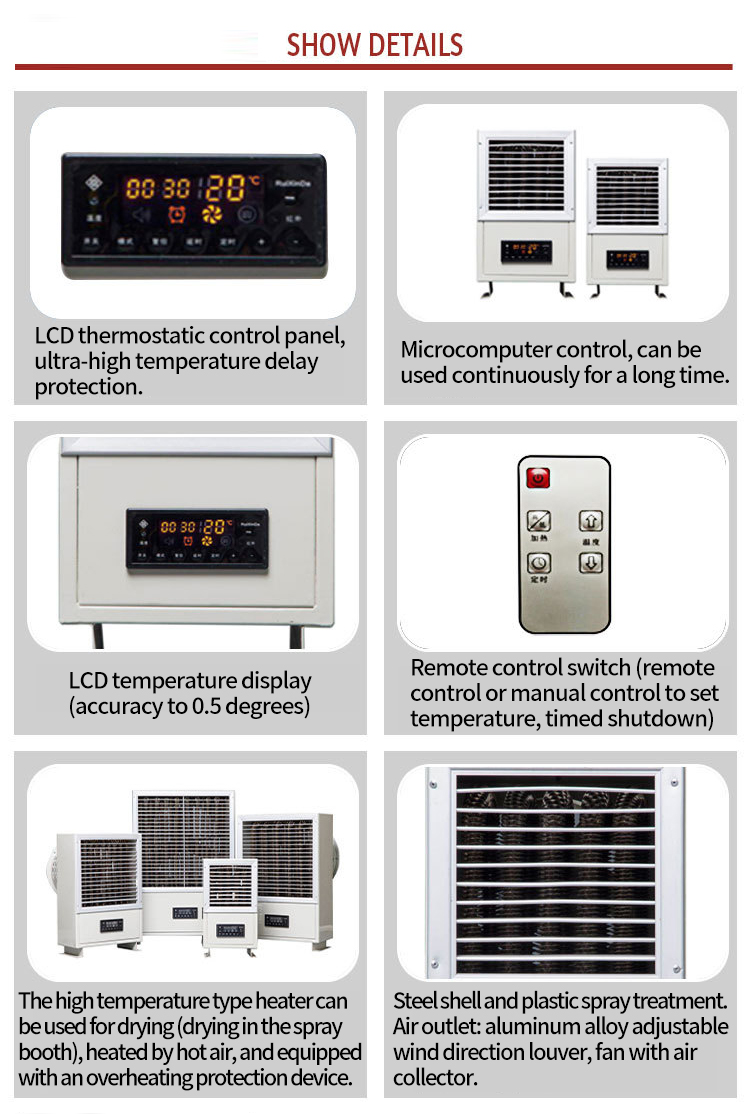

Display details: LCD constant temperature control panel, ultra-high temperature delay protection.
Microcomputer control, can be used continuously for a long time. LCD temperature display (accuracy to 0.5 degrees). Remote control switch (remote control or manual control to set temperature, timed shutdown). High temperature heater can be used for drying (paint spray room drying), hot air heating, and equipped with overheating protection device.
Steel shell, sprayed plastic. Air outlet: aluminum alloy adjustable. Wind direction shutter, fan with air collector.

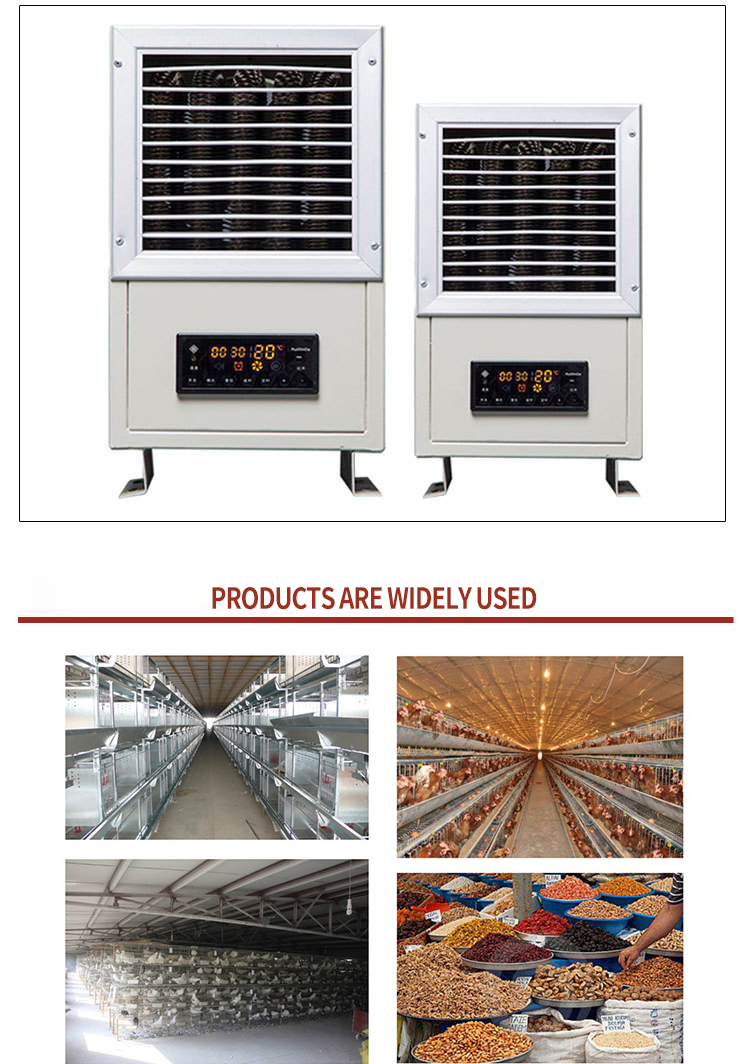

Application scenarios: factory workshops, warehouses, winter construction, temporary buildings, livestock and poultry breeding, greenhouse planting, food processing, wood processing, machinery manufacturing.
