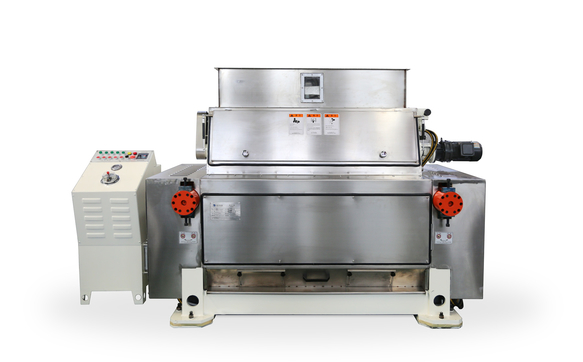

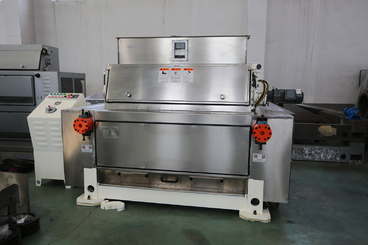

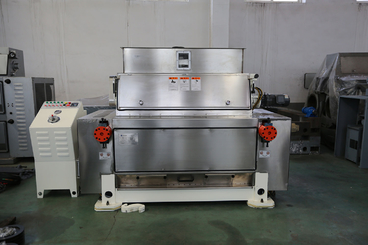

The daily output of 400*1250 steam corn machine is 100T

1. Shell: Steam corn press CF100TH400 shell, protective cover plate and front and rear upper and lower door plate are made of all stainless steel plate, the contact material part is stainless steel;

2. Configuration: equipped with SKF bearing, SEW reducer motor, Siemens Bede energy-saving motor; Equipped with steam exhaust device to reduce steam corrosion of equipment;

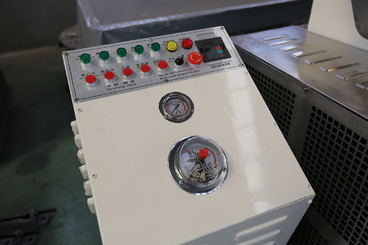

3. Hydraulic station: energy-saving PLC hydraulic pump station, all control speed regulation and parting roll can be controlled through the pump station;

4. Roll: adopts a heavy high nickel chromium molybdenum alloy roll in China, centrifugal composite casting, hardness HS75±3, after dynamic balance test, alloy layer thickness 30-35mm, a drawing can process 35,000-45,000 tons of corn flakes;

5. Magnetic separation: equipped with a magnetic separation mechanism to prevent the iron in the material from damaging the roll; Fully closed design, safe and beautiful;

6. Belt pulley: the belt pulley adopts tightening sleeve design, disassembling the roll without destroying the bearing, the belt pulley adopts CPT brand;

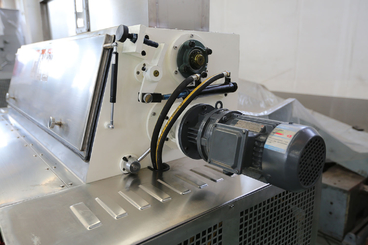

7. Feeding: The SEW reducer drives the feeding roller to force feeding, so that the tooth roller feeding uniform, continuous, stable and reliable; The opening and closing of the baffle door are operated by hydraulic control; And the opening of the baffle door can be adjusted at will according to the processing output.

8. Gear: Cast by a heavy imported German centrifugal composite casting equipment, the material is made of high nickel-chromium molybdenum alloy, the 45# steel forging shaft head can be disassembled and cold loading process, and the roll surface has a special shape of straight (oblique) teeth. The perfect combination of tooth rollers can roll the material into the ideal blank, which has stable and reliable long-term use performance and long life.
